BALL VALVE

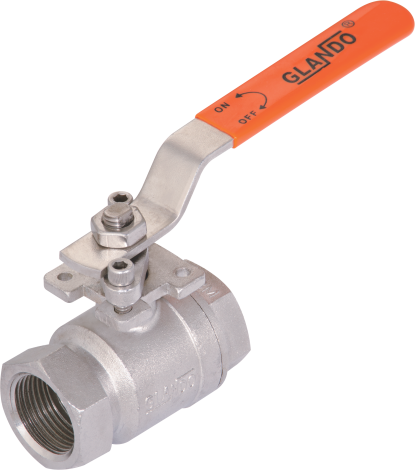

BALL VALVE 1PC S/E, S/W

BODYASTM A 216 Gr. WCB /ASTM A 216 Gr. Cf8 ASTM A 351 Gr. CF8M
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
BALLASTM A 351 Gr. CF8 / ASTM A 351 Gr. CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD. : BS 5351
  • INSPECTION & TESTING STD.: BS 6755 (PART-I)
  • END CONNECTION : SCREWED ENDS TO BSP I BSPTI NPT : SOCKET WELD ENDS TO ANSI B 16.11

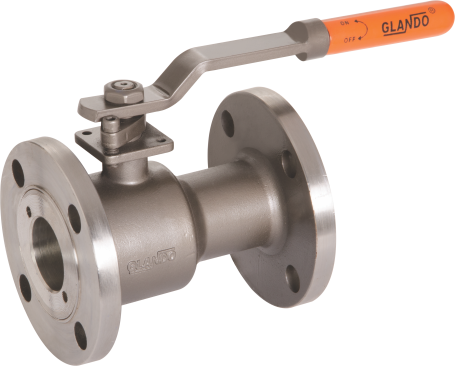

BALL VALVE 1PC F/E

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
BALLASTM A 351 Gr. CF8 / CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / A 351 Gr. CF8-CF8M
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD. : BS5351
  • INSPECTION & TESTINGSTD. : BS6755(PART-I)
  • END CONNECTION: FLANGEDENDSASPER ASME B 16.5 RF 150# / 300#
  • FACETOFACE:AS PERASME B16.10

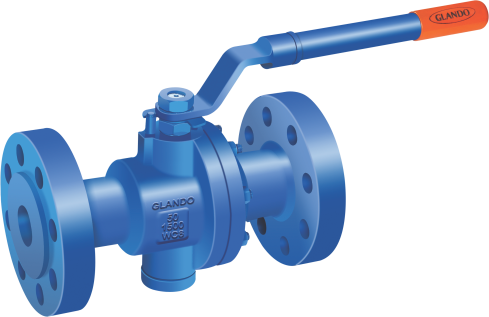

BALL VALVE 2PC F/E (high Pressure)

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. CF8-CF8M
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8-CF8M
BALLASTM A 351 Gr. CF8 / CF8M
STEMAISI 304 / AISI 316
GLANDAISI 304 / AISI 316
BALL SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLAND PACKINGSPTFE / GFT
BODY SEALSPTFE / GFT
GEAR BOXSTD
GLAND NUTCARBON STEEL / STAINLESS STEEL
STEM HOUSINGASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8-CF8M
BODY STUD & NUTASTM A 193 B7 / ASTM A194 2H
TRUNNIONAISI 304 / AISI 316
SEAT HOLDER & SPRING ASS.SS 316/SS SPRINGS
‘O’ RingVITON
STEM HOUSING BOLTSASTM A 193 B7 / ASTM A 194 2h
STEM HOUSING GASKETSPIRAL WOUND SS 316 + GRAPHITE
GEAR BOX PILLERMS
TRUNNION BOLTSASTM A 193 B7 / ASTM A 194 2H
TRUNNION BEARING BUSHCFT
TRUNNION GASKETSPIRAL WOUND SS 304 / SS316 + GRAPHITE
TRUNNION COCERMS
VENT VALVEASSEMBLY

Technical Data

  • MANUFACTURING STD. : BS5351
  • INSPECTION & TESTINGSTD. : BS6755(PART-I)
  • END CONNECTION: FLANGEDENDSASPER ASME B 16.5 RF 150# / 300#
  • FACETOFACE:AS PERASME B16.10

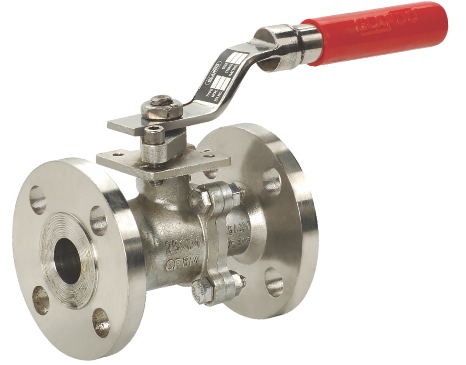

BALL VALVE 2PC F/E

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / CAST IRON
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / CAST IRON
BALLASTM A 351 Gr. CF8 / ASTM A 351 Gr. CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / A 351 Gr. CF8-CF8M
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
BODY STUD & NUTSCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD.: BS 5351
  • INSPECTION & TESTING STD. : BS 6755 / API 598
  • END CONNECTION: FLANGED ENDS AS PER ASME B 16.5 RF
  • FACE TO FACE :AS PER ASME B16.10

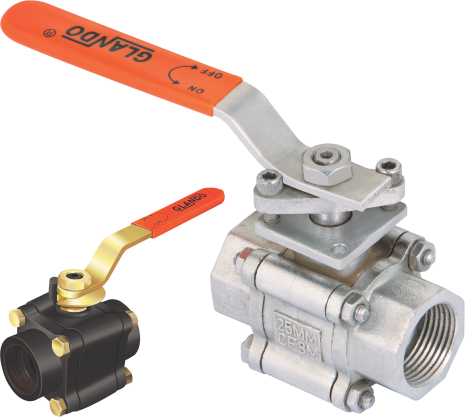

BALL VALVE 3PC S/E, S/W

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / A 105
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / A 105
BALLASTM A 351 Gr. CF8 / CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
BODY STUD & NUTSCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD.: BS 5351
  • INSPECTION & TESTING STD.: BS 6755 (PART-I)
  • END CONNECTION : SCREWED ENDS TO BSPI BSPTI NPT : SOCKETWELD ENDS TO ANSI B 16.11

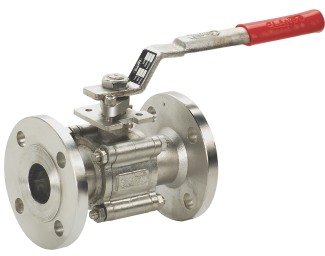

BALL VALVE 3PC F/E

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / CAST IRON
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M / CAST IRON
BALLASTM A 351 Gr. CF8 / CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / A 351 Gr. CF8-CF8M/C
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
BODY STUD & NUTSCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD.: BS 5351
  • INSPECTION & TESTING STD.: BS 6755 (PART-I)
  • END CONNECTION : SCREWED ENDS TO BSPI BSPTI NPT : SOCKETWELD ENDS TO ANSI B 16.11

PTFE LINED BALL VALVE 2PC F/E

Lines side pieceDuctile Iron / ASTM A216 Gr. WCB  / SG iron
LINED INTEGRAL BALLSG IRON
TOP COVERAISI 304 / AISI 316
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
FLEXIBLE DIAPHRAGMPTFE / GFT
DIAPHRAGM BACKUPPTFE / GFT
HEX HEAD BOLT FOR TOP COVERSS 304
THRUST WASHERSS 304
HEX HEAD BOLTSS 304
LEVERMILD STEEL ROD

Technical Data

  • MANUFACTURING STD. : ISO 5752/API 609 WITH WAFER CONSTRUCTION
  • INSPECTION & TESTING STD.: BS EN 12266•1&2
  • END CONNECTION : WAFER TYPE SUITABLE FOR ANSI RF 150#

FLUSH BOTTOM VALVE

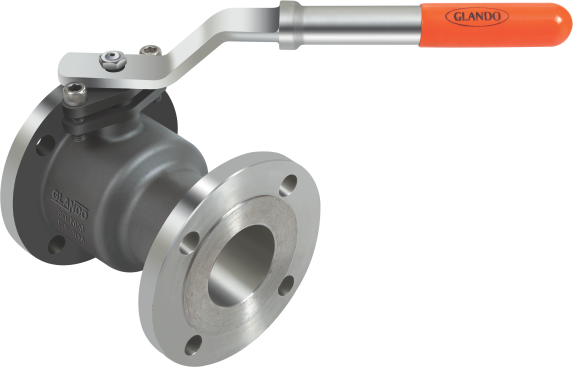

BALL TYPE FLUSH BOTTOM VALVE F/E

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
CONNECTORASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
BALLASTM A 351 Gr. CF8 / CF8M
STEMAISI 304 / AISI 316
BALL SEALSPTFE / GFT
BODY SEALSPTFE / GFT
STEM PACKINGPTFE / GFT
GLANDASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
GLAND BOLTCARBON STEEL / STAINLESS STEEL
STEM NUTCARBON STEEL / STAINLESS STEEL
LEVERCARBON STEEL / STAINLESS STEEL
SLEEVEPVC

Technical Data

  • MANUFACTURING STD.: BS 5351
  • INSPECTION & TESTING STD. : BS 6755 (PART•I)
  • END CONNECTION : FLANGED ENDS ASPER ASME B 16.5 RF 150#
  • FACETO FACE : ASPER ASME B16.10

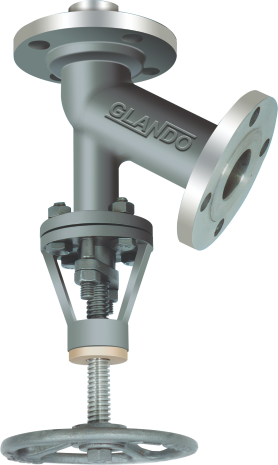

‘Y’ TYPE FLUSH BOTTOM VALVE

BODYASTM A 216 Gr. WCB /ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8M
YOKEASTM A 216 Gr. WCB / ASTM A 351 Gr. Cf8 ASTM A 351 Gr. CF8m
PLUGAISI 304 / AISI 316
PLUG NUTAISI 304 / AISI 316
SEAT RINGAISI 304 / AISI 316
STEMAISI 304 / AISI 316
GLAND BUSHAISI 304 / AISI 316
GLAND FLANGEAISI 304 / AISI 316
GLAND PACKINGSPTFE / GRAPHOILE
CROSS BOLT & NUTCARBON STEEL / STAINLESS STEEL
EYE BOLT & NUTCARBON STEEL / STAINLESS STEEL
YOKE NUTCARBON STEEL / STAINLESS STEEL
HAND WHEELCASR IRON / MALLEABLE IRON
HAND WHEEL NUTCARBON STEEL / STAINLESS STEEL
NAME PLATEALLUMINIUM

Technical Data

  • ENDCONNECTION : FLANGED ENDS ASPER ASMEB 16.5 RF 150#

SAFETY VALVE

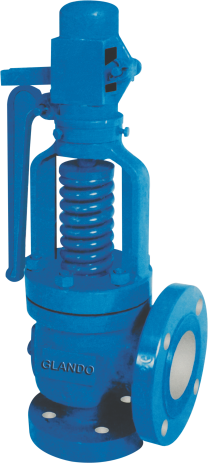

SAFETY VALVE

BODYASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
BONNETASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
CAPASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
SPRING WASHERCARBON STEEL / STAINLESS STEEL
GUIDEAISI 304 / AISI 316
NOZZLEAISI 304 / AISI 316
POPING RINGAISI 304 / AISI 316
DISC HOLDERAISI 304 / AISI 316
VALVE SEATAISI 304 / AISI 316
BALLAISI 304 / AISI 316
SEAT HOLDERAISI 304 / AISI 316
POPING RING SCREWAISI 304 / AISI 316
FORKASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
LEVERASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
LEVER PINAISI 304 / AISI 316
SpringSpring steel
SETTING SCREWAISI 304 / AISI 316
SETTING NUTAISI 304 / AISI 316
SPINDLEAISI 304 / AISI 316
LEVER AS JUSTING WASHERAISI 304 / AISI 316
PINAISI 304 / AISI 316
SPINDLE WASHERAISI 304 / AISI 316
SPINDLE NUTAISI 304 / AISI 316
GASKETGRAPHITE
SCREWCARBON STEEL / STAINLESS STEEL

Technical Data

  • MANUFACTURING STD. : API525 / API 526 / BS 6257
  • INSPECTION & TESTING STD. : API 527
  • ENDCONNECTION: FLANGED END ANSI B 16.5 RF ASA150#

PRESSURE REDUCING VALVE

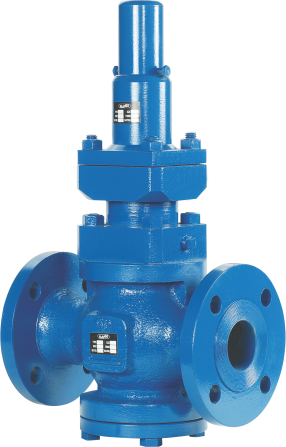

PRESSURE REDUCING VALVE

BODYASTM A216 Gr. WCB / A351 Gr. CF8-CF8M
SEAR RING13% Cr. SS FACING (SS 304)
MAIN VALVE DISCAISI 304 / AISI 316
MAIN VALVE SPRINGSPRING STEEL
BUSHAISI 304 / AISI 316
BOTTOM FLANGE GASKETCOMPRESSED ASBESTOS FIBER
BOTTOM FLANGEASTM A216 Gr. WCB / ASTM A351 Gr. CF8M
BOTTOM SIDE STUD & NUTCARBON STEEL
PISTONAISI 304 / AISI 316
PISTON RINGCARBON STEEL
PISTON CYLINDERAISI 304 / AISI 316
Center plateASTM A216 Gr. WCB / ASTM A351 Gr.CF8M
BODY STUD & NUTCARBON STEEL
CENTER FLANGE GASKETCOMPRESSES ASBESTOS FIBER
PILOT VALVE GASKETCOMPRESSES ASBESTOS FIBER
PILOT VALVE SPRINGSPRING STEEL
PILOT VALVE GASKETCOMPRESSED ASBESTOS FIBER
PILOT VALVEAISI 304 / AISI 316
PILOT VALVE SEATAISI 304 / AISI 316
SPRING BUTTONCarbon steel
PlugAISI 304 / AISI 316
PILOT  VALVE STUD & NUTCARBON STEEL
PILOT VALVE BODYASTM A216 Gr. WCB / ASTM A351 Gr. CF8M
DIAPHRAGM GASKETCOMPRESSED ASBESTOS FIBER
DIAPHRAGMPHOSPHOROUS BRONZE
HOUSING STUD & NUTCARBON STEEL
ADJUST. SPRING HOUSINGASTM A216 Gr.WCB / ASTM A351 Gr. CF8M
ADJUSTING SPRINGSPRING STEEL
SPRING BUTTONCARBON STEEL
LOCK NUTCAROB STEEL
ADJUSTING BOLTCARBON STEEL

Technical Data

  • MANUFACTURING STD.: ASPERMANISHAIND
  • ENDCONNECTION:FLANGEDEND

GLOBE VALVE

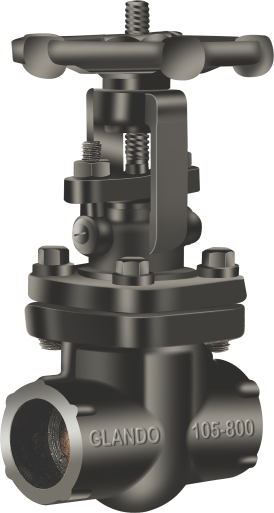

FORGED STEEL GLOBE VALVE – SW / SE

BODYASTM A105 / F 304 / F 316 / F 22
BONNETASTM A105 / F 304 / F 316 / F 22
DISKASTM A217 CA15+STELLITED/F 304 / F 316
SEAT RINGASTM A217 CA15+STELLITED/F 304 / F 316
SPINDLEAISI 410 (13% Cr.)/AISI 304 / AISI 316
GLANDAISI 410 (13% Cr.)/AISI 304 / AISI 316
GLAND FLANGEASTM A105/F304/F316/F 22
YOKE BUSHS.G.IRON
GASKETASBESTOS FILLER SS 304 SPIRAL WOUNDED
GLAND PACKINGSGRAPH.ASB.INHB. & INCONEL WIRE REIN/GRAPHOIL
BONNET BOLTSASTM A193 Gr.B7
EYE BOLTS & NUTSASTM A193 Gr.B7 & ASTM A 194 Gr. 2H
SCREW & WASHERSASTM A193 Gr.B7
HAND WHEELDUCTILE IRON / MALLEABLE IRON
WHEEL NUT & WASHERASTM A194 Gr.2H
NAME PLATEALLUMINIUM

Technical Data

  • Manufacturing Std. : BS 5352
  • INSPECTION & TESTING STD. : API 598 / BS 6755(PART•I)
  • END CONNECTION : Setowed Ends to BSP/BSPTINPT Socket-Weld Ends to ANSI B16.11 BullWeld Ends to ASME B 16.25

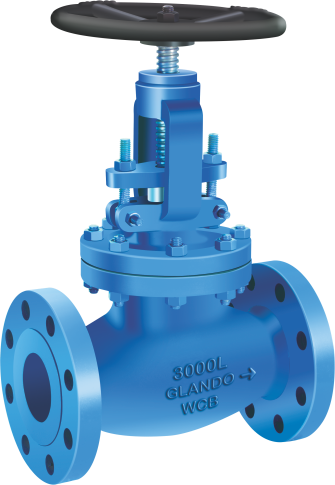

GLOBE VALVE – F/E

BODYASTM A216 Gr.WCB – WC6 /CAST IRON ASTM A351 Gr.CF8/ASTM A351 Gr.CF8M
BONNETASTM A216 Gr. WCB – WC6 / CAST IRON ASTM A351 Gr. CF8 / ASTM A 351 Gr.CF8M
PLUGAISI 410 / AISI 304 / AISI 316
PLUG NUTAISI 410 / AISI 304 / AISI 316
SEAT RINGAISI 410 / AISI 304 / AISI 316
STEMAISI 410 / AISI 304 / AISI 316
BACK SEAT BUSHINGAISI 410 / AISI 304 / AISI 316
GLANDAISI 410 / AISI 304 / AISI 316
GLAND FLANGEASTM A216 Gr. WCB – WC6/ CAST IRON ASTM A351 Gr. CF8/ASTM A351 Gr. CF83
YOKE NUTS.G.IRON
GRUB SCREWCARBON STEEL / STAINLESS STEEL
STEM PACKINGPTFE / GRAPHOIL
BONNET GASKETSS 304 / SS 316 SPIRAL WOUND
BONNET STUDS & NUTSASTM A193 Gr. B7 & ASTM A194 Gr.2H
GLAND EYE BOLTS & NUTSASTM A193 Gr. B7 & ASTM A194 Gr.2H
GLAND LUG BOLTS & NUTSCARBON STEEL / STAINLESS STEEL
HAND WHEELDUCTILE IRON / MALLEABLE IRON
WHEEL NUT & WASHERCARBON STEEL / STAINLESS STEEL
NAME PLATEALLUMINIUM

Technical Data

  • MANUFACTURING STD.: BS1873
  • INSPECTION & TESTING STD. : API 598 / BS 6755 (PART-I)
  • ENOCONNECTION: FLANGED ENOSAS PER ASMEB 16.5 RF150# / 300# / 600# / 900# / 1500#12500# / BS1560
  • FACETOFACE:AS PERASME B16.10

GATE VALVE

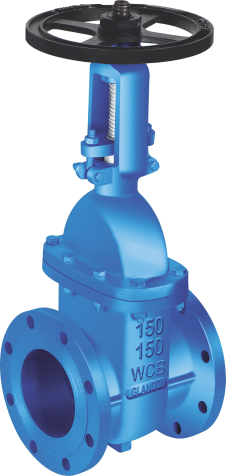

GATE VALVE FLANGED END

BODYASTM A216 Gr.WCB – WC6 /CAST IRON ASTM A351 Gr.CF8/ASTM A351 Gr.CF8M
BONNETASTM A216 Gr. WCB – WC6 / CAST IRON ASTM A351 Gr. CF8 / ASTM A351 Gr.CF8M
WEDGE13% Cr. + STELLITED/ASTM A351 Gr. CF8M
STEMAISI 410 / AISI 304 / AISI 316
SEAT RING13% Cr. STELLITED / AISI 304 / AISI 316
BACK SEATAISI 410 / AISI 304 / AISI 316
GLANDAISI 410 / AISI 304 / AISI 316
GLAND FLANGEASTM A216 Gr. WCB / ASTM A 351 Gr. CF8M
YOKE SLEEVENI-RESIST/S.G. IRON
YOKEAISI 410 / AISI 304 / AISI 316
GLAND PACKINGMTALLIC Wire Reinforced Graphite Asbestos
BONNET GASKETSS 304 / SS 316 SPIRAL WOUNDED WITH CAF
BONNET STUDS & NUTSASTM A193 Gr.B7 & ASTM A194 Gr.2H
GLAND EYE BOLTS & NUTSASTM A193 Gr.B7 & ASTM A194 Gr.2H
GLAND LUG BOLTS & NUTSASTM A193 Gr.B7 & ASTM A194 Gr.2H
GREASE NIPPLEBRASS / STEEL
KEYCARBON STEEL
HAND WHEELCAST IRON / MALLEABLE IRON
HAND WHEEL NUTCARBON STEEL / STAINLESS STEEL
NAME PLATEALUMINIUM

Technical Data

  • MANUFACTURING STD. : AP!60
  • INSPECTION & TESTING STD. : AP! 5980
  • END CONNECTION : FLANGED ENDS AS PER ASME B 16.5 RF 150#
  • FACETOFACE:AS PERASME B16.10

FORGED STEEL GATE VALVE – SW / SE

BODYASTM A105 / F 304 / F 316 / F 22
BONNETASTM A105 / F 304 / F 316 / F 22
WEDGEASTM A217 CA15 + STELLITED/F 304 / F 316
SEAT RINGAISI 410 + STELLITED / AISI 304 / AISI 316
SPINDLEAISI 410 (13% Cr.)/AISI 304 / AISI 316
GLANDAISI 410 (13% Cr.)/AISI 304 / AISI 316
GLAND FLANGEASTM A105/F304/F316/F 22
YOKE BUSHS.G.IRON
GASKETASBESTOS FILLER SS 304 SPIRAL WOUNDED
GLAND PACKINGSGRAPH.ASB.INHB. & INCONEL WIRE REIN/GRAPHOIL
BONNET BOLTSASTM A193 Gr.B7
EYE BOLTS & NUTSASTM A193 Gr.B7 & ASTM A 194 Gr. 2H
SCREW & WASHERSASTM A193 Gr.B7
HAND WHEELDUCTILE IRON / MALLEABLE IRON
YOKE NUT & WASHERCARBON STEEL
NAME PLATEALLUMINIUM

Technical Data

  • Manufacruring Std. : BS5352
  • INSPECTION & TESTING STD. : API602
  • END CONNECTION: Sa-ewed Ends to BSP I BSPTI NPT Socket-Weld Ends to ANSI B16.11 Butt Weld Ends to ASME B 16.25

CHECK VALVE

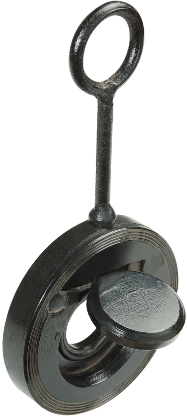

WAFER TYPE CHECK VALVE

BODYIS 210 FG. 200 / ASTM A 216 Gr. WCB ASTM A 351 CF8 / ASTM A351 Gr. CF8M
CLAPPERIS 210 FG.200 / ASTM A 216 Gr.WCB ASTM A 351 CF8 / ASTM A 351 Gr.CF8M
CLAPPER PINAISI 410 / AISI 304 / AISI 316
Clapper sealNIRTILE / EPDM / VITON / SILICON / PTFE
Body sealNIRTILE / EPDM / VITON / SILICON / PTFE
LIFTING EYEM.S. / STAINLESS STEEL
Name plateALLUMINIUM

Technical Data

  • ManufacturingStd.:API60/API600
  • INSPECTION&TESTINGSTD.:API6D/API598
  • ENOCONNECTION: wares to suitANSt 816.5150#/ OIN2542{PN-10)/DIN2543(PN-16)/8S10Table·E

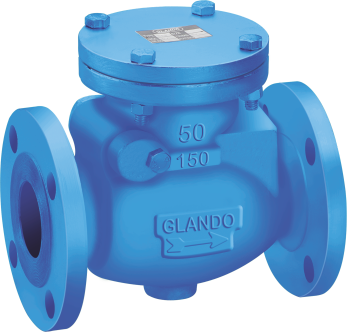

SWING CHECK VALVE F/E

BODYASTM A216 Gr.WCB – WC6 /CAST IRON ASTM A351 Gr.CF8/ASTM A351 Gr.CF8M
TOP COVERASTM A216 Gr. WCB – WC6 / CAST IRON ASTM A351 Gr. CF8 / ASTM A 351 Gr.CF8M
DISC13% Cr. FACING ON WCB + STELLITED/ SS 304-316
SEAT RING (SEAL WELD)13% Cr. + STELLITED / SS 304 / SS 316
HINGEASTM A216 Gr.WCB – WC6 /CAST IRON ASTM A351 Gr.CF8/ASTM A351 Gr.CF8M
DISC NUTCARBON STEEL / STAINLESS STEEL
DISC WASHERCARBON STEEL / STAINLESS STEEL
HING PINAISI 410 / AISI 304 / AISI 316
COVER GASKETMETALLIC WIRE REINFORCED GRAPHITE ASBESTOS
COVER STUDASTM A193 Gr.B7
COVER NUTSASTM A194 Gr.2H
LIFTING EYE BOLTASTM A 105
NAME PLATEALUMINIUM

Technical Data

  • MANUFACTURING STD.: BS 1868
  • INSPECTION & TESTING STD. : ISO 5208 (REPLACE OF BS 6755 (Part-I)
  • END CONNECTION: FLANGED ENDSAS PER ASMEB 16.5 RF150# Butt Weld Ends to ASME B 16.25
  • FACE TO FACE: AS PER ASME 816.10

BUTTERFLY VALVE

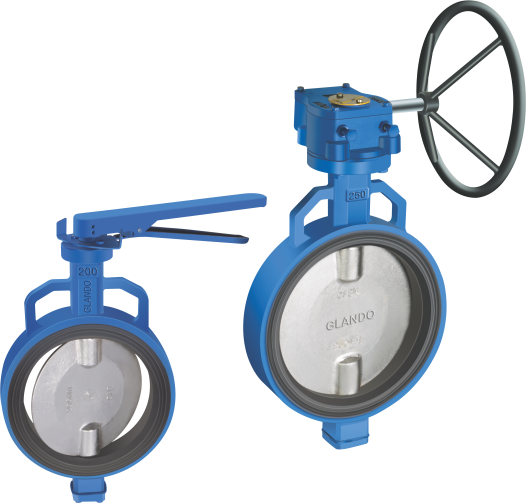

WAFER TYPE BUTTERFLY VALVE

BODYCAST IRON / S.G.IRON / ASTM A 216 Gr.WCB ASTM A 351 Gr.CF8 / ASTM A 351 Gr. CF8M
DISCCAST IRON / S.G.IRON / ASTM A 216 Gr. WCB  ASTM A 351 Gr. CF8 – CF8M, DISC ENCAPSULATION
WITH VITON NITRILE, EPDM, NEOPRENE & HYPALON
AVAILABLE EPOXY COATED NYLON-II COATED
SPINDLEAISI 410 / AISI 304 / AISI 316
SEATNITRILE / EPDM / SILICON / VITON / HYPALON / PTFE
‘O’ RINGNITRILE / EPDM
PINAISI 304 / AISI 316
LEVERM.S. FABRICATED
GEAR BOXCAST IRON
HAND WHEELMS FABRICATED
NAME PLATEALLUMINIUM

Technical Data

  • MANUFACTURING STD.: BS5351
  • INSPECTION & TESTINGSTD.: BS6755(PART-I)
  • END CONNECTION: FLANGEDENDSASPER ASME B 16.5 RF 150# / 300#
  • FACETOFACE:AS PERASME B16.10

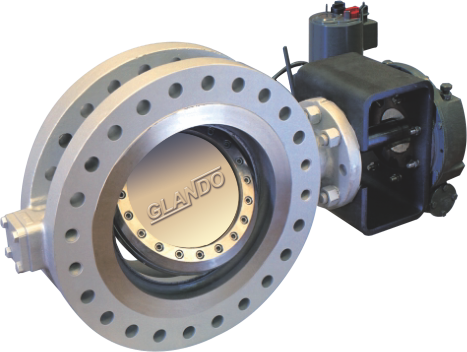

OFFSET DESIGN BUTTERFLY VALVE

BODYCI / CS / S.G.IRON/CF8/CF8M
BOTTOM COVERCI / CS / S.G.IRON/CF8/CF8M
DISCPTFE/NITRILE/EPDM/VITON/NEOPRENE
SEAT RINGSS 304 / SS 316
ELASTOMER RINGEPDM RUBBER
ELASTOMER RETAINING RINGSS 304 / SS 316
TOP SPINDLEAISI 410 / AISI 304 / AISI 316
BOTTOM SPINDLEAISI 410 / AISI 304 / AISI 316
GLANDCARBON STEEL / STAINLESS STEEL
GLAND PACKINGSMETALLIC WIRE REINFORCED ASBESTOS / GRAPHOIL
GLAND CAP SCREWSCARBON STEEL / STAINLESS STEEL
THRUST PADPTFE
BEARING BUSHPTFE
‘O’ RINGSEPDM RUBBER
FLAPPER CLAMPING BOLTSSS 304 / SS 316
ELASTOMER CLAMPING BOLTSSS 304 / SS 316
BOTTOM COVER BOLTSCARBON STEEL / STAINLESS STEEL
GEAR BOX CLAMPINGCARBON STEEL
GEAR BOXStd.

Technical Data

  • Manufacturing Sid.: BS5155 / API 609 / EN 593 / IS 13095 / MSS Sp67
  • lnspecbOn and Testing Sid.: BS6755 (PART-I)/ API 598 I EN 12266-1
  • EndConnoction: Wafer lo suitANSI B16.5150# / ANSI 125# / BS 10TAB D & E/ IS 6392 NP 0.6 / 1.0 / 1.6
  • Facelo Face : BS 5155/ ISO 5752/ API 609 / AWWA C -504
  • Top Flange Drilling: ISO 5211

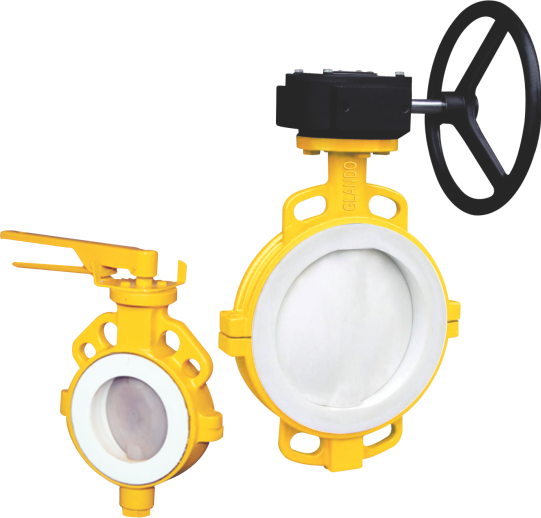

PTFE LINED BUTTERFLY VALVE

BODYCS / S.G. IRON / CF 8 CF 8 M
DISCSS 304 / SS 316 LINED WITH FEP/PFA
SEATPTFE/PFA
SHAFTAISI 316 / AISI 304
PACKINGGRAPHITE
BOTTOM FLANGECS / S.G. IRON / CF 8 / CF
THRUST BEARINGSTD
BRACKETSTAINLESS STEEL
GEAR BOX MOUNTING PLATEMILD STEEL
GEAR BOXCAST IRON

Technical Data

  • MANUFACTURING STD.: BS5351
  • INSPECTION & TESTINGSTD.: BS6755(PART-I)
  • END CONNECTION: FLANGEDENDSASPER ASME B 16.5 RF 150# / 300#
  • FACETOFACE:AS PERASME B16.10

STRAINERS

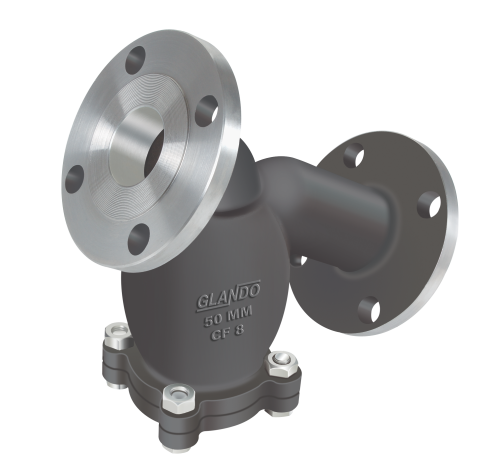

‘Y’ TYPE STRAINER F/E

BODYASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
COVERASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
PERFORATED SHEETSS 304 / SS 316 – 3mm Thick.
SCREENSS 304 / SS 316 (40 MESH)
COVER BOLTCARBON STEEL / STAINLESS STEEL
GASKETSS 304 / SS 316 SPIRAL Wound
DRAINCARBON STEEL / STAINLESS STEEL

Technical Data

  • MANUFACTURING STD. :AS PER MANISHAINDUSTRIES
  • INSPECTION & TESTING STD. : AS PER MANISHA INDUSTRIES
  • END CONNECTION:FLANGED ENDS TOASME 816.5 RF 150#

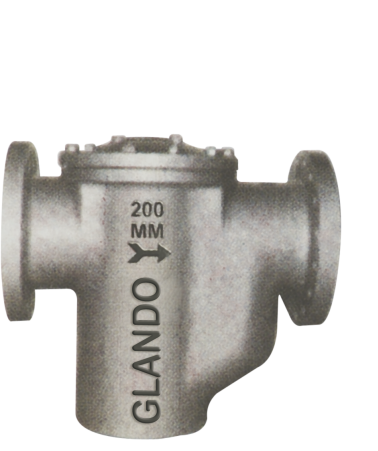

‘POT’ TYPE STRAINER F/E

BODYASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
COVERASTM A216 Gr.WCB / ASTM A 351 Gr. CF8 / CF8M
BOTTOM COVERCS / SS 304 / SS 316
PERFORATED SHEETSS 304 / SS 316 – Ø3mm HOLE
ScreenSS 304 / SS 316 – 40 MESH
COVER STUD & NUTCARBON STEEL / STAINLESS STEEL
GASKETSS 304 / SS 316 SPIRAL WOUNDED
MAGNATESTD
NAME PLATEALLUMINIUM

Technical Data

  • MANUFACTURING STD. :AS PER MANISHAINDUSTRIES
  • INSPECTION & TESTING STD. : AS PER MANISHA INDUSTRIES
  • END CONNECTION:FLANGED ENDS TOASME 816.5 RF 150#

FILTERS

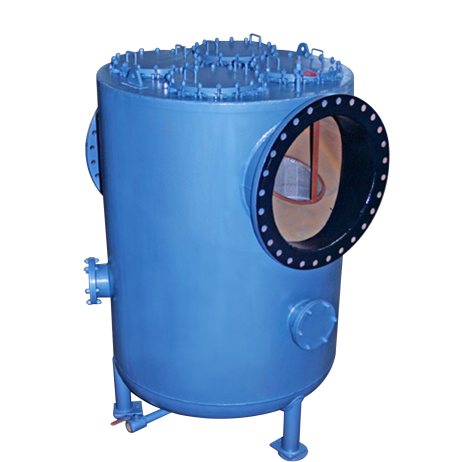

basket filter

BODYMILD STEEL / STAINLESS STEEL 304 / 316
COVERMILD STEEL / STAINLESS STEEL 304 / 316
BOTTOM COVERmS / SS 304 / SS 316
PERFORATED SHEETSS 304 / SS 316 – Ø3mm HOLE
ScreenSS 304 / SS 316 – 40 MESH
COVER STUD & NUTCARBON STEEL / STAINLESS STEEL
GASKETSS 304 / SS 316 SPIRAL WOUNDED
NAME PLATEALLUMINIUM

Technical Data

  • MANUFACTURING STD. :AS PER MANISHAINDUSTRIES
  • INSPECTION & TESTING STD. : AS PER MANISHA INDUSTRIES
  • END CONNECTION:FLANGED ENDS TOASME 816.5 RF 150#

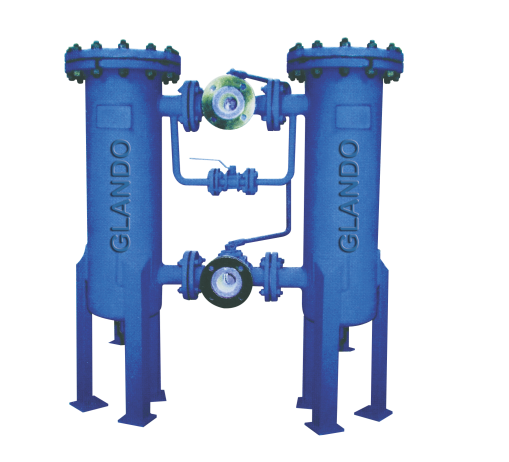

duplex filter

BODYmild steel / stainless steel 304 / 316
COVERMILD STEEL / STAINLESS STEEL 304 / 316
BOTTOM COVERmS / SS 304 / SS 316
PERFORATED SHEETSS 304 / SS 316 – Ø3mm HOLE
ScreenSS 304 / SS 316 – 40 MESH
COVER STUD & NUTCARBON STEEL / STAINLESS STEEL
GASKETSS 304 / SS 316 SPIRAL WOUNDED
NAME PLATEALLUMINIUM

Technical Data

  • MANUFACTURING STD. :AS PER MANISHAINDUSTRIES
  • INSPECTION & TESTING STD. : AS PER MANISHA INDUSTRIES
  • END CONNECTION:FLANGED ENDS TOASME 816.5 RF 150#

SIGHT GLASS VALVE

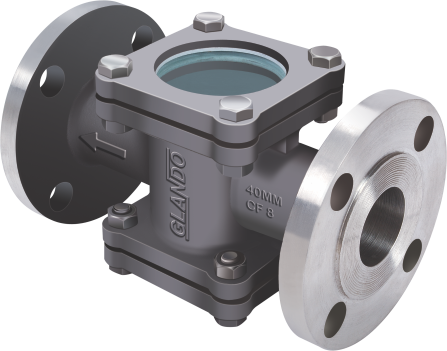

DOUBLE WINDOW SIGHT GLASS F/E

BODYASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / cf3m
GLASS COVERASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / cf3m
GLASSTOUGHENED GLASS
GASKETPTFE
BOLTS & NUTSCARBON STEEL / STAINLESS STEEL

Technical Data

  • MANUFACTURING STD. : AS PER MANISHA INDUSTRIES
  • END CONNECTION : FLANGED ENDS ASPER ASME B 16.5 RF 150#

Subscribe Our Newsletter

Expect a friendly letter from us once a week. No spam.

You have been successfully Subscribed! Ops! Something went wrong, please try again.
Premier organization renowned for its exceptional expertise and outstanding achievements in the field of manufacturing.
Facebook Twitter Youtube Linkedin

Quick Link

Support

Contact

Copyright © 2024 Manisha Industries (Glando Valves). All rights reserved.
Scroll to Top
